ESN Joint Set

ESN JOINT SET is a two pack THIOKOL (a registered trade mark of MORTON THIOKOL INC, USA) Polysulphide based Sealant with two available grades.

After mixing two packs, the mixed material provides a strong and highly elastic sealant through cross linking process.

ESN JOINT SET-G, gun applied or non-sag type for vertical and inclined expansion contraction joints. And ESN JOINT SET P-Pouring type for horizontal joints.

Standards: Complies with DIN 18540, US Fed. Spee 77-S-00227E, British Standard BS 4254: 1983 5212-1990& 12118-1987.

Uses:

ESN JOINT SET-G is used both in vertical and inclined expansion/contraction joints in all types of building and civil engineering constructions such as Retaining Walls, Water Retaining Structures, Underpasses and Tunnels, Basements, Precast Concrete Elements, Bridges, High and Low rise buildings and wherever a permanently flexible seal is required.

ESN JOINT SET-Pis designed specially for runways, subways, rigid pavements etc. i.e. for horizontal expansion/contraction joints.

Special Features:

1. International class quality from world class materials of MORTON THIOKOL INC. USA.
2. High economical material and easy-to-use.
3. Excellent adhesion to many substratas
4. High Movement Capability.
5. Good Chemical resistance
6. Long Lasting elasticity.
7. Easy to pour on horizontal joints with ESN JOINT SET pouring grade.

COLOUR

Pack Ais white and Pack Bis black to dark brown in colour.
Movement Capacity
Expansion/Contraction
Shear Movement
25to30%
20%

Joint Design

Minimum Joint depth
Maximum Joint width
Width: depth ratio for joints up to 10 mm wide
Joints from 10 mm to 50 mm, Width: depth ratio
8mm
40mm

APPLICABLE :

Surface preparation : All surface must be clean, dry and free from any loose particles. Correct joint depths can be determined by inserting polyethylene foam or compressible board tightly in to the joint. Where joint have been treated with fibre filler board they should be raked back to the required depth and a bond breaker tape be inserted. Protect surface with a masking tape

Mixing:

Both packA& pack Bare premeasured. NO PART MIXING IS ALLOWED
Use Pack A: Pack B together. Use suitable instrument for mixing.
Mix for 8-10 minutes or until smooth and homogeneous material results.

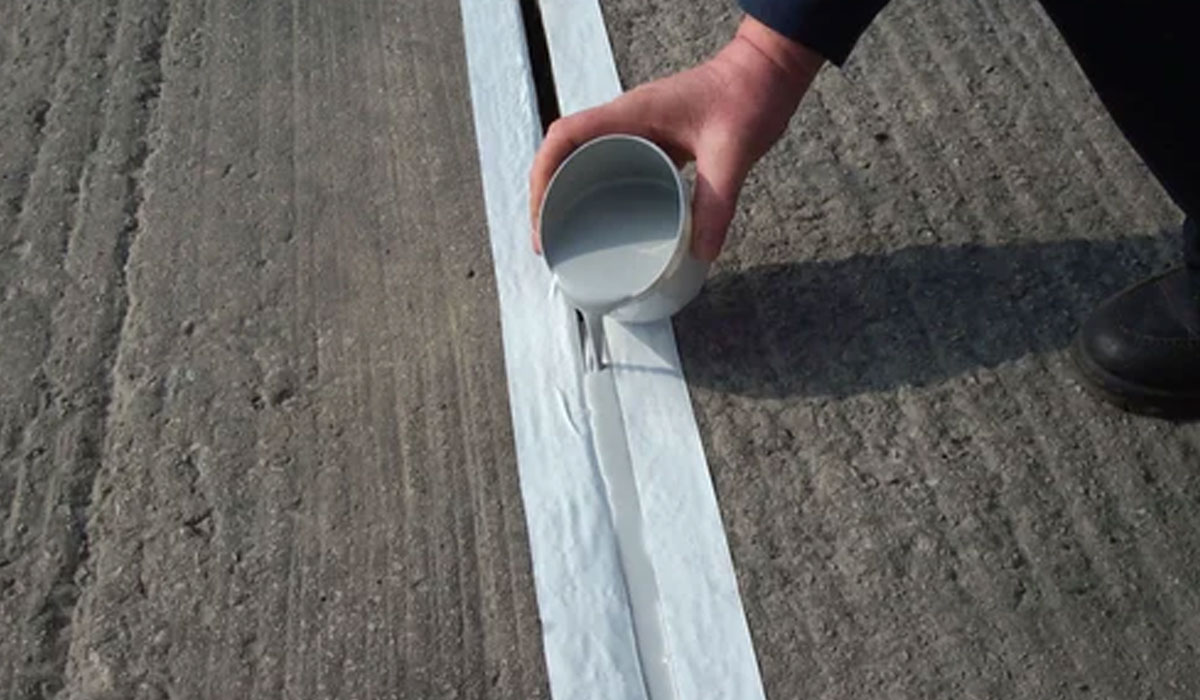

Pour the mixed sealant into the joints without trapping or tool off with a spatula to a lightly concave profile. Remove masking tape.

Chemical Resistance:

Aviation fuels, Kerosene, Diesel, Petrol, Lubricating Oils, White Spirit, Dilute acid and Alkalies.

ESN JOINT SET PRIMER

ESN JOINT SET Primer is recommended for the surface namely Concrete, Brickwork, Asbestos Cement, Gypsum board, natural as well as artificial stone, glass, ceramics, anodized aluminium, timber and rigid PVC etc. Primer is not required on epoxy or polyester surfaces, some roughening may be required with emery paper. ESN JOINT SET Primer is a single pack material.

It contains solvent & is highly inflammable. Do not allow naked flame nearby.
Available in 250 ml & 500 ml. Dosage: 6 to 8 M2 per Ur.

Warranty

Our ESN JOINT SET is guaranteed against any manufacturing defect. No liability can be accepted by us as suggestions and recommendations that are laid here are based on our practical working experience only.
