Variable Message Sign Board

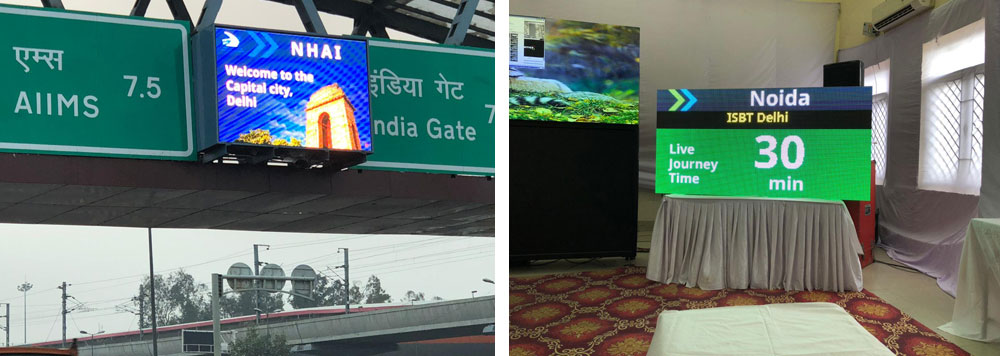

SNI lnfratech Pvt. Ltd. Provide LED Display Boards for all Indoor & Outdoor requirements Hardware/Software We Provide Solution for Smart Variable Display Boards. Our Solutions helps to Display real time and static Massages. We have Successfully Implement and Completed Smart LED Boards Project National Highways Authority of India, Bharat Heavy Electricals Ltd.to name a few We Have our own in-house Assembly, Testing & Software Engineers for all your Hardware Software Requirements

Functional Specifications

1. VMS solution is a fully customizable solution for each display, location to show live traffic-related information i.e. journey time, re-routing options, live congestion related information specific to that location/ corridor.

2. VMS Solution has the capability to be integrated with disaster management & emergency response data sources to provide instant alerts to road users & public.

3. Easy to manage and operate from a single control room

4. Android App shall be provided for entering Emergency messages and distributing to the VMS Authentication key provided to the authorized users only.

5. The system is capable to detect any unauthorized opening of the display doors at the central server location and alert the user.

PORTABLE SOLAR VMS

Technical Specs

• Base Trolley with 2 large Wheels, one guide wheel.and 4 fixing legs
• Leaf spring suspension system
• Solar Tubular Battery 200Ah 12V
• LED Panel with Cabinets and structure
• Solar panels with Structure
• Solar Tubular C10 Battery 12V 200Ah - 2nos
• Display running time 7 - 8 hours
• Charging Time 5 - 6 hours
• Solar Panel 340W x 2nos
• Display Size 1920mm x 960mm
• 3 step load controller to avoid jerk load
• Overload Control System
